Series 3++

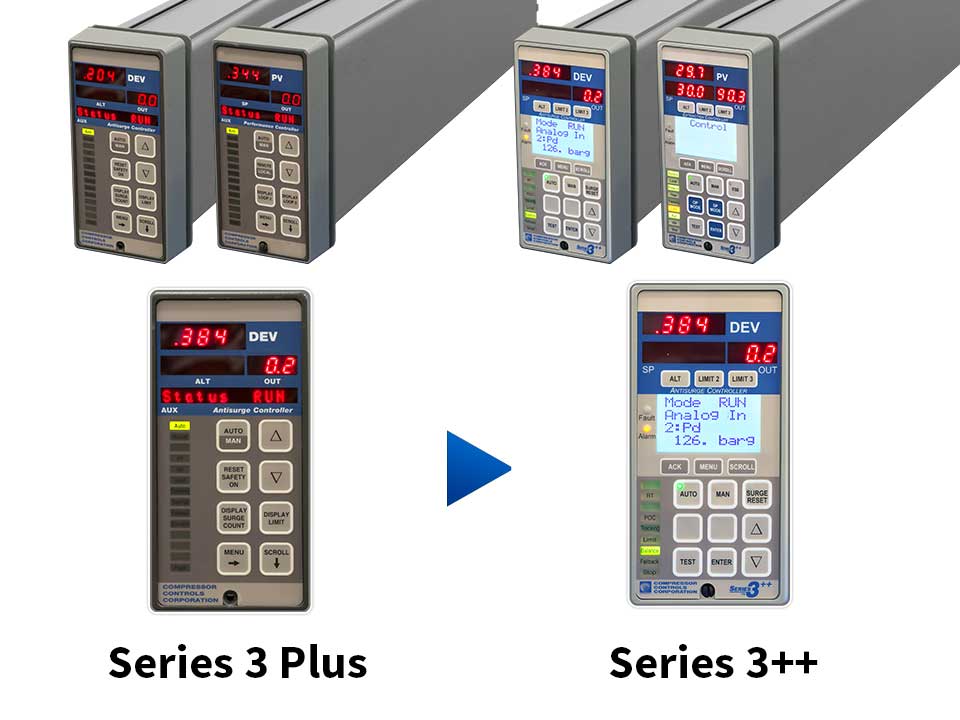

Series 3++ controllers are designed to be the perfect choice for replacing existing Series II, Series 3, and Series 3 Plus single-loop controllers. By packing the state-of-the-art electronics and updated operator interface in the same physical form factor as Series 3 Plus, it provides a seamless upgrade path for the existing systems.

Plug-and-play hardware replacement for minimizing risks and downtime

By keeping the same physical form factor as the existing Series 3 Plus controllers and their backplanes, control system replacement requires no engineering, panel modifications, or wiring changes. Control applications retain the same trusted algorithms and configuration parameters as before – minimizing the risks of upgrade.

Key Specifications:

  • Inputs and Outputs:
    Compressor Controllers (22): 8 Analog Inputs, 2 Analog Outputs, 7 Discrete Inputs, 5 Discrete outputs
    Turbine Controllers (40): 8 Analog Inputs, 3 Analog Outputs, 16 Discrete Inputs, 9 Discrete Outputs, 3 Frequency Inputs
  • Redundancy Options: Available to purchase in simplex or duplex options
  • Controller Power Options: Available to purchase in 100 to 240 Vac or 24 Vdc
  • Controller Dimensions (HxWxD):
    Plate-mount: 2.96 (75.2mm) x 6.00in (153mm) x 19.04in (484mm)
    *For more details such as on cut-out dimensions, please request UM3300/H Series 3++ Hardware Reference
  • Communication Options:
    Redundant Modbus RTU RS-422/RS-485,
    Redundant Modbus RTU over TCP via External Converter,
    or Redundant Modbus RTU over TCP via Built-in Converter
    *One Modbus port will be used for data communication with TrainView operator workstation (if purchased)
  • Operating Temperature Range: -4 degF to +140 degF (-20 degC to +60 degC)

Agency Certifications:

(Partial list – For full details please refer to TN41 Agency Certifications for Series 3++ Controllers)

  • CSA and CE compliance
  • Hazardous area classification:
    Canada: Class 1, Zone 2

Each Series 3++ control system can run one of the following control applications.

Driver Controls

  • Speed Controller
  • Extraction Controller

Driven Equipment & Process Controls

  • Antisurge Controller
  • Performance Controller
  • Dual-Loop Controller (Antisurge and Performance)

Platforms:

Control applications:
